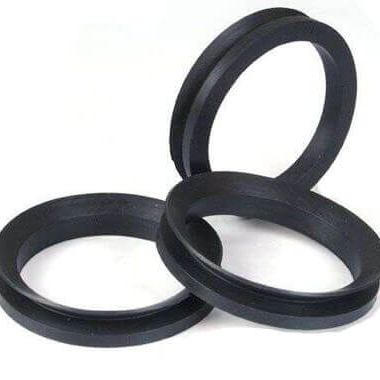

V-Seals
V-Seals are versatile, all-rubber rotary shaft seals designed to provide excellent protection against contaminants such as dirt, dust, water, and oil splashes. These seals are mounted directly onto a rotating shaft and seal axially against a stationary counter face—typically at a right angle to the shaft—such as a housing wall, bearing face, or other machine component.
How They Work
The flexible sealing lip of the V-seal maintains light contact with the counter surface while rotating with the shaft. As the shaft turns, the seal creates a dynamic sealing action that deflects or excludes contaminants while retaining lubrication within the system. Its self-adjusting nature ensures consistent sealing performance, even with minor misalignments or shaft wear.
Key Benefits
- Effective Contaminant Exclusion: Prevents the ingress of dirt, dust, water, and other debris that can damage bearings or internal components.
- Simple Installation: Stretches over the shaft and requires no special tools or grooves—ideal for retrofits or field repairs.
- Low Friction: Minimal drag on the counter face, resulting in less heat generation and longer service life.
- Self-Centering: Automatically adjusts to shaft movement and misalignment without losing sealing contact.
- Versatile Design: Compatible with a wide range of shaft diameters, surfaces, and materials.
Typical Applications
- Electric Motors
- Agricultural Equipment
- Industrial Gearboxes
- Automotive Drive Systems
- Pumps and Fans
- Conveyor Systems
Available Configurations
V-Seals are offered in several profiles and materials to meet different operating conditions:
- Profiles: VA (standard), VS (heavier-duty), VL (low cross-section), VRM (metal-cased support)
Operating Parameters
- Shaft speeds up to 10,000 RPM (depending on size and application)
- Temperatures ranging from -40°C to +200°C (material dependent)
- Suitable for both dry and lubricated environments
Why Choose V-Seals?
V-Seals offer an economical and highly reliable solution for rotary shaft sealing—especially where space is limited, and traditional seals might be too rigid or complex. Whether you need bearing protection in harsh outdoor conditions or contaminant control in precision machinery, V-Seals deliver dependable performance with minimal maintenance.
